CUBE CONTROLS

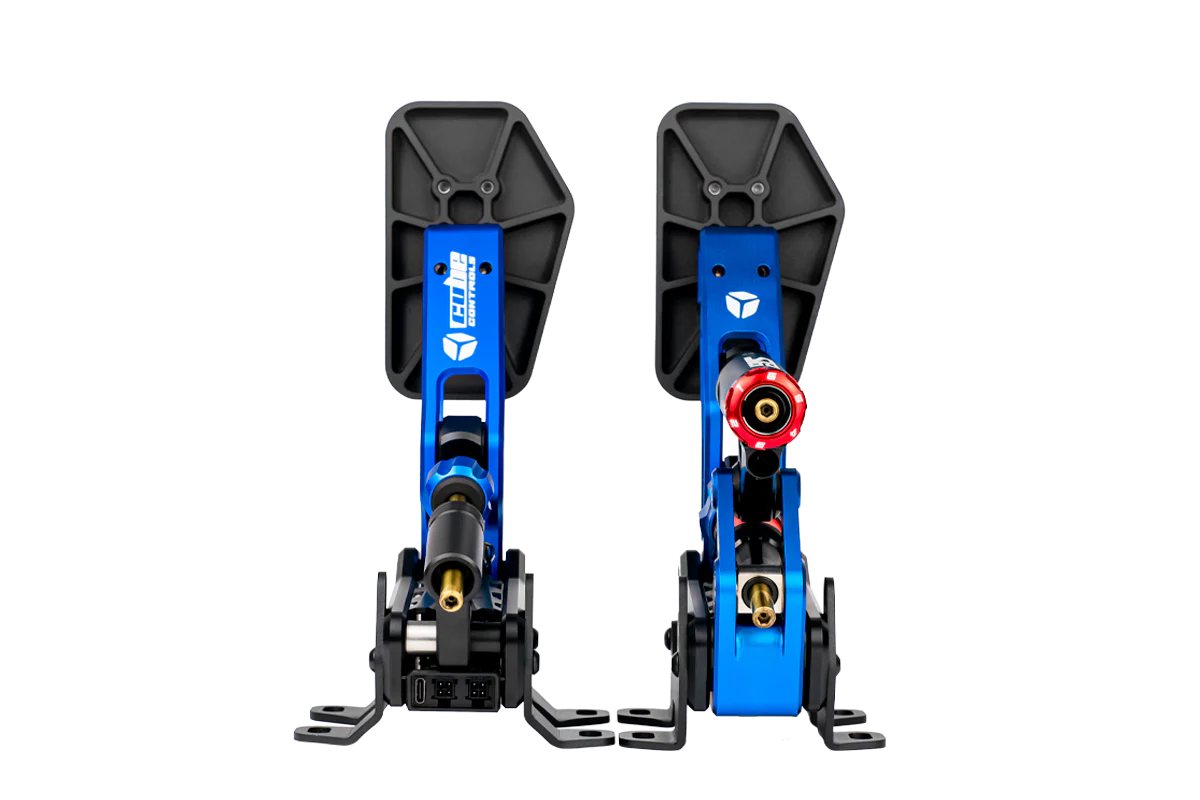

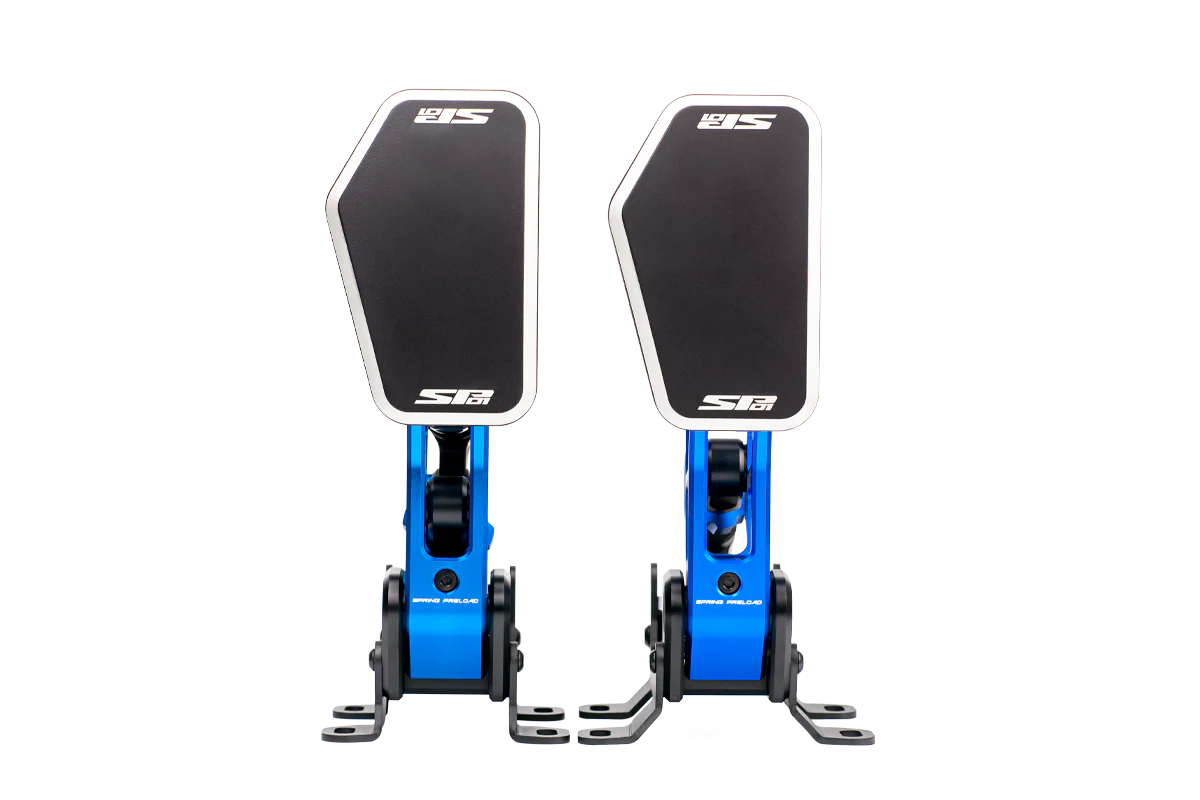

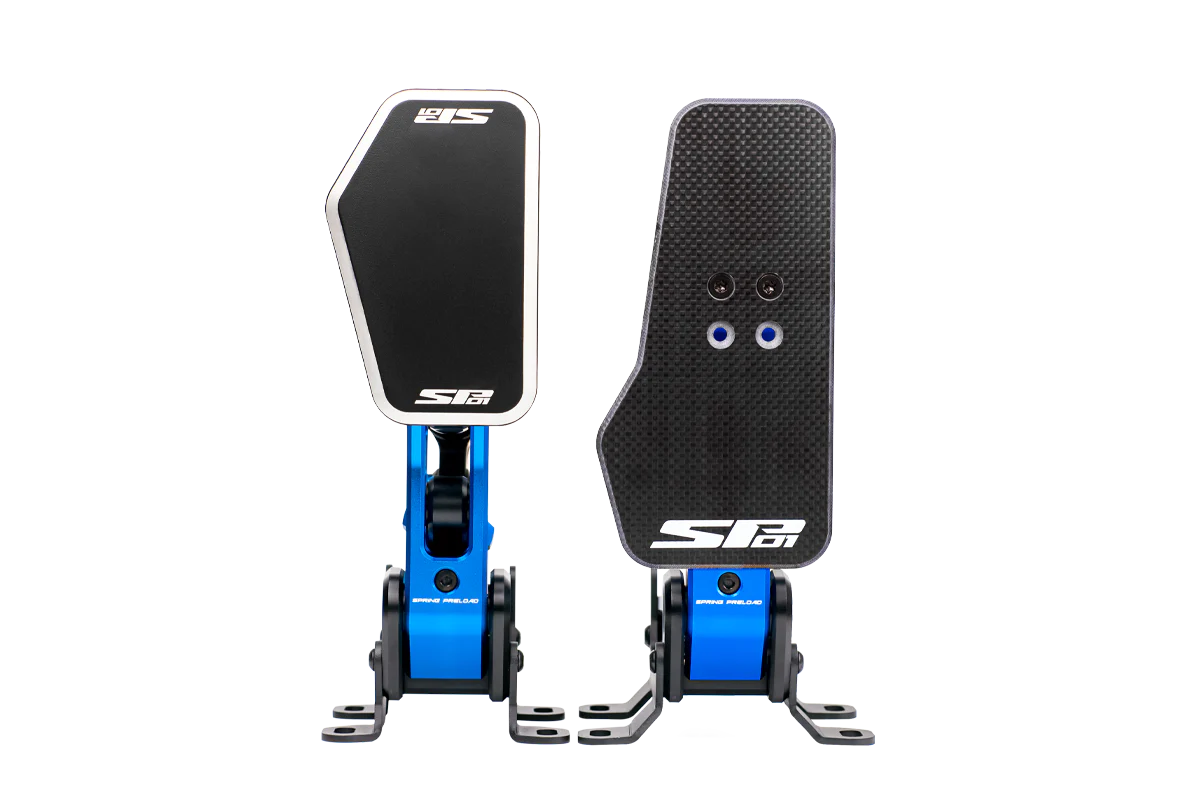

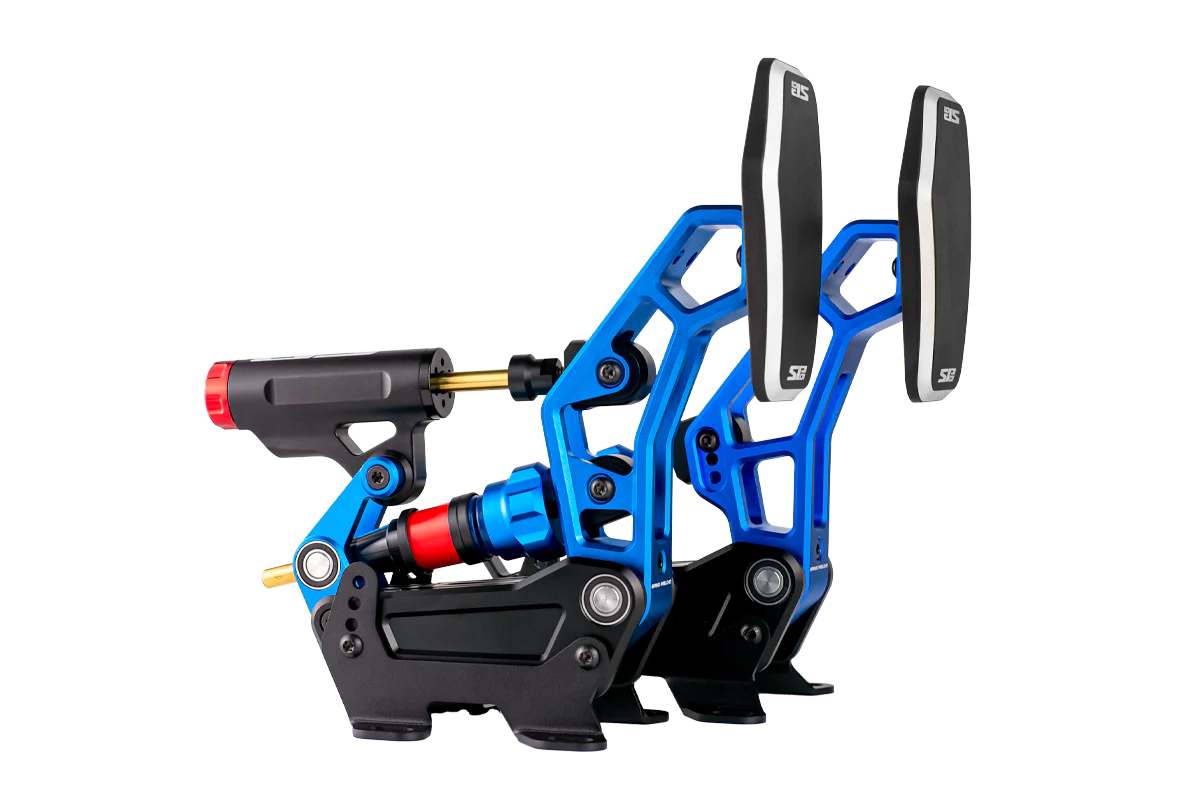

SP01 Pedals

SP01 Pedals

Regular price $1,045.00 USD
Regular price Sale price $1,045.00 USD
Sale Sold out
Shipping calculated at checkout.
Style
Enhance your simulator with the SP01 pedals. This new entry in the Cube Controls ecosystem is designed to expand its possibilities and give you the best performance. CNC machined aluminum main body, 100% carbon fiber throttle plate. Customizable in two versions for Formula and GT lovers.

The SP01 pedals guarantee superior precision. The smooth and robust throttle perfectly matches the grip of our G+ Socks. The brake with its 200kg load cell ensures a rock-solid response with various springs and rubber dampers, compressible elements available to combine to achieve the perfect fit. Our proprietary software will do the rest, guaranteeing options for the smoothest calibration.

Major

Precision press fit ball bearings at ALL pivot points
CNC machined 6061 and 7075 aluminum main frame
FEM optimized design for a bending-free cutting-edge structure
Custom brackets with adjustable main pedal body angle in 5° increments
Accelerator

Carbon Fiber Pedal Pad Face Plate (Formula Version Only)
Adjustable pedal via a dedicated knob on the main shaft
Easy access spring preload adjustment
Precision machined main shaft with high wear resistance coating
Self-lubricating nylon sleeve machined to tolerance for smoother operation
16-bit resolution Hall sensor
USB-C connector for main control electronics
Brake

Custom lightweight pad faceplate with textured grip
Fine-tuning spring preload option on main pedal and preload ring on compression elements
Precision machined main shaft with high wear resistance coating
Custom designed fully hydraulic shock absorber with 16 preload settings
Various springs and rubber damping compression elements available.
Self-centering spring and shock absorber washers
200kg precision load cell.
16-bit resolution
