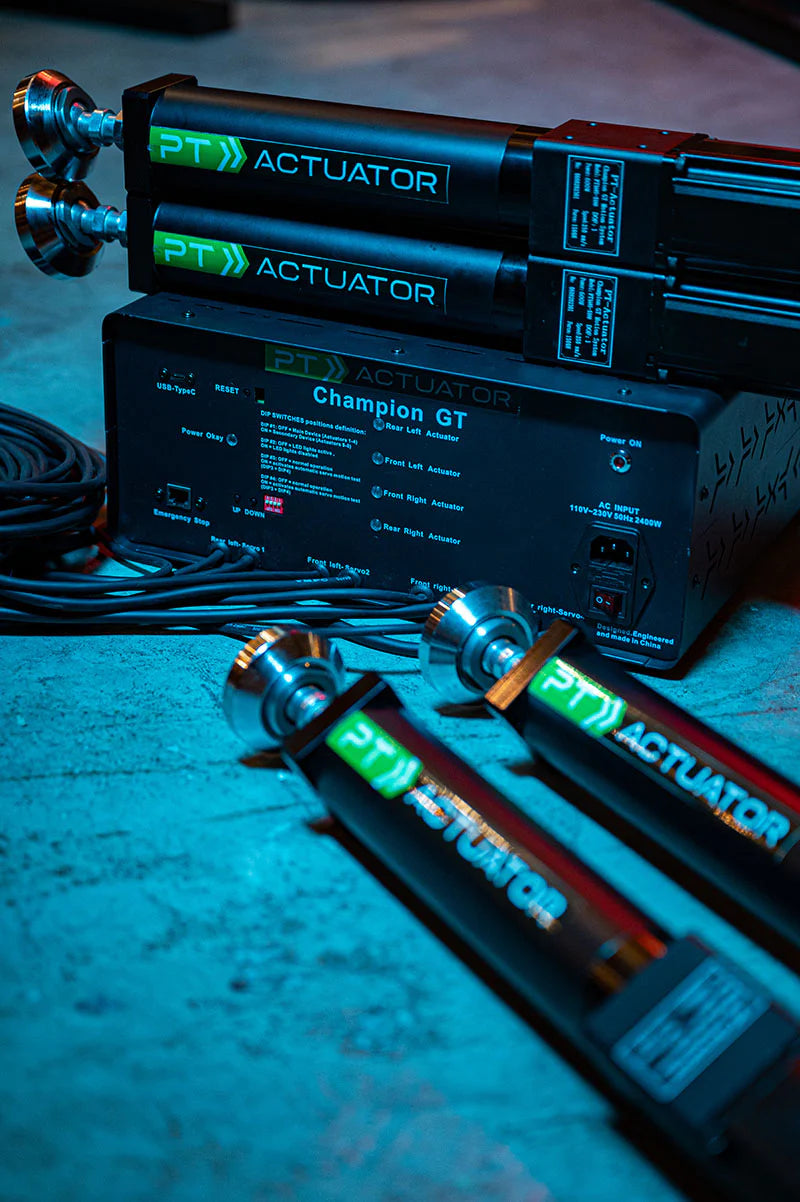

Champion GT Edition

PT Actuator presenta su nuevo kit de actuadores 3DOF, todo en uno de 100 mm, y los tenemos en stock para envío inmediato

La edición Champion GT es el complemento perfecto para cualquier chasis de extrusión de aluminio y es verdaderamente plug and play.



Includes:

• Central core controller(AMC-SRS 4in1)
• PTA-E-stop button 1 pc ( LAN cable inside )
• PTA-Champion Multiple in One Metal Enclosure 1pc
• All Shield PT-Actuator servo system specially for sim racing/flight (flange size 60 with 600w) 4pcs
• Actuator captive floor cups 4 pcs
• Champion GT actuators (Speed:300mm/s, Force:150kg, Stroke:100mm/3.94 inches) 4pcs
• PT-Actuator Long-term ball screw 1605/diameter 16mm lead screw:5mm
• Champion actuator mounting brackets for rig/cockpit ( PT LOGO ) 4 pcs
• Power&Encoder cables (3 meters/ 9.84 feet ) 4pcs
• Compatible with Sim Racing Systems Motion Software (Recommended)




Specification for Champion GT

• Heave (disp/vel/accel.) ±125 mm, ±250 mm/s

• Pitch (disp/vel/accel.) ±7°, ±20°/s, 210°/s2

• Roll (disp/vel/accel.) ±15°, ±35°/s, 280°/s2

• Supported Max Weight: 300 kg

• Product Weight: 29 kg

• Boxed Weight – 34k
