Winctrl

EFIS R

Name: EFIS R
Brand: Winctrl
Price: 89.0 USD
Availability: InStock

$89.00 USD

~~$99.00 USD~~ $89.00 USD

Oferta Agotado

Los gastos de envío se calculan en la pantalla de pago.

Variantes de producto

Cantidad

Specification

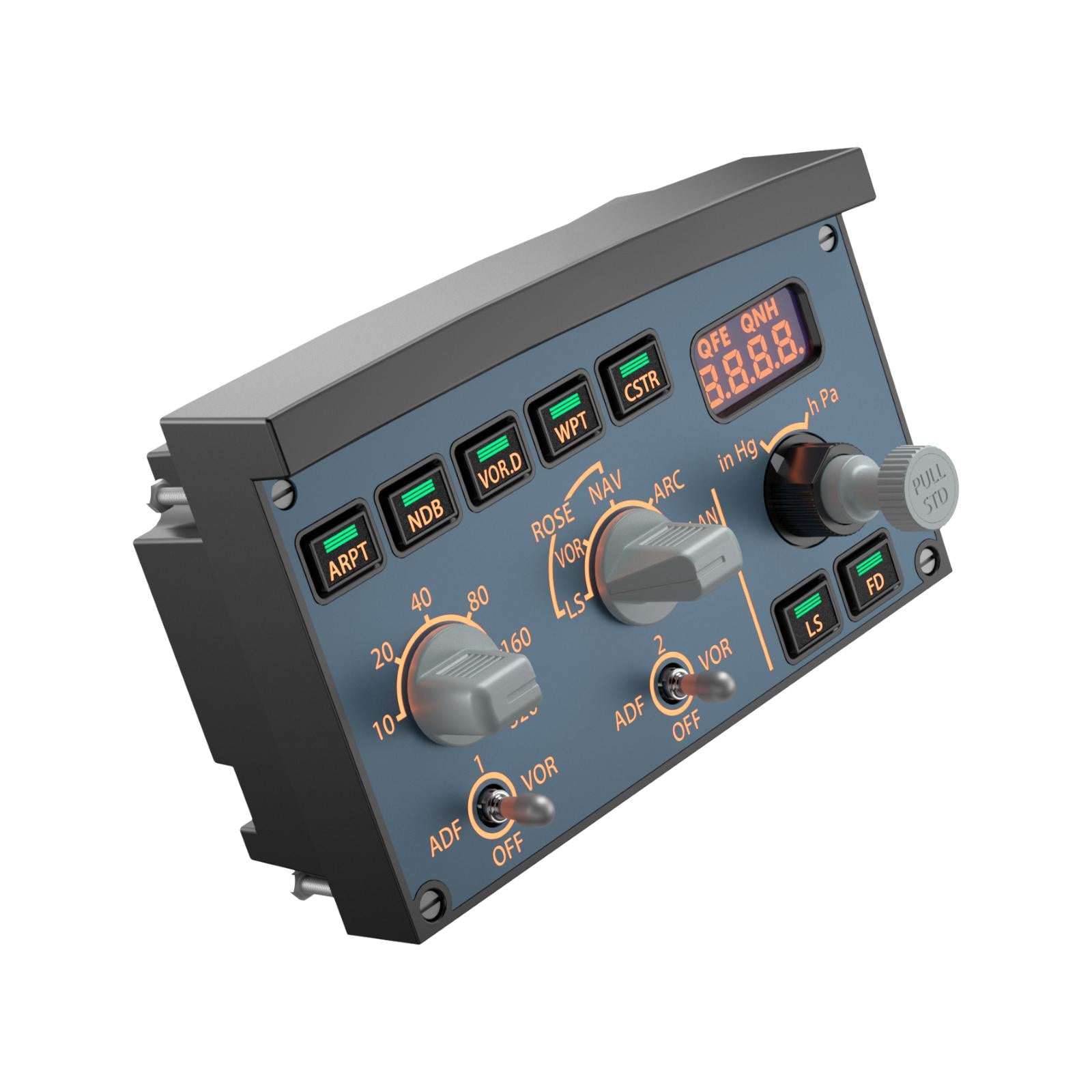

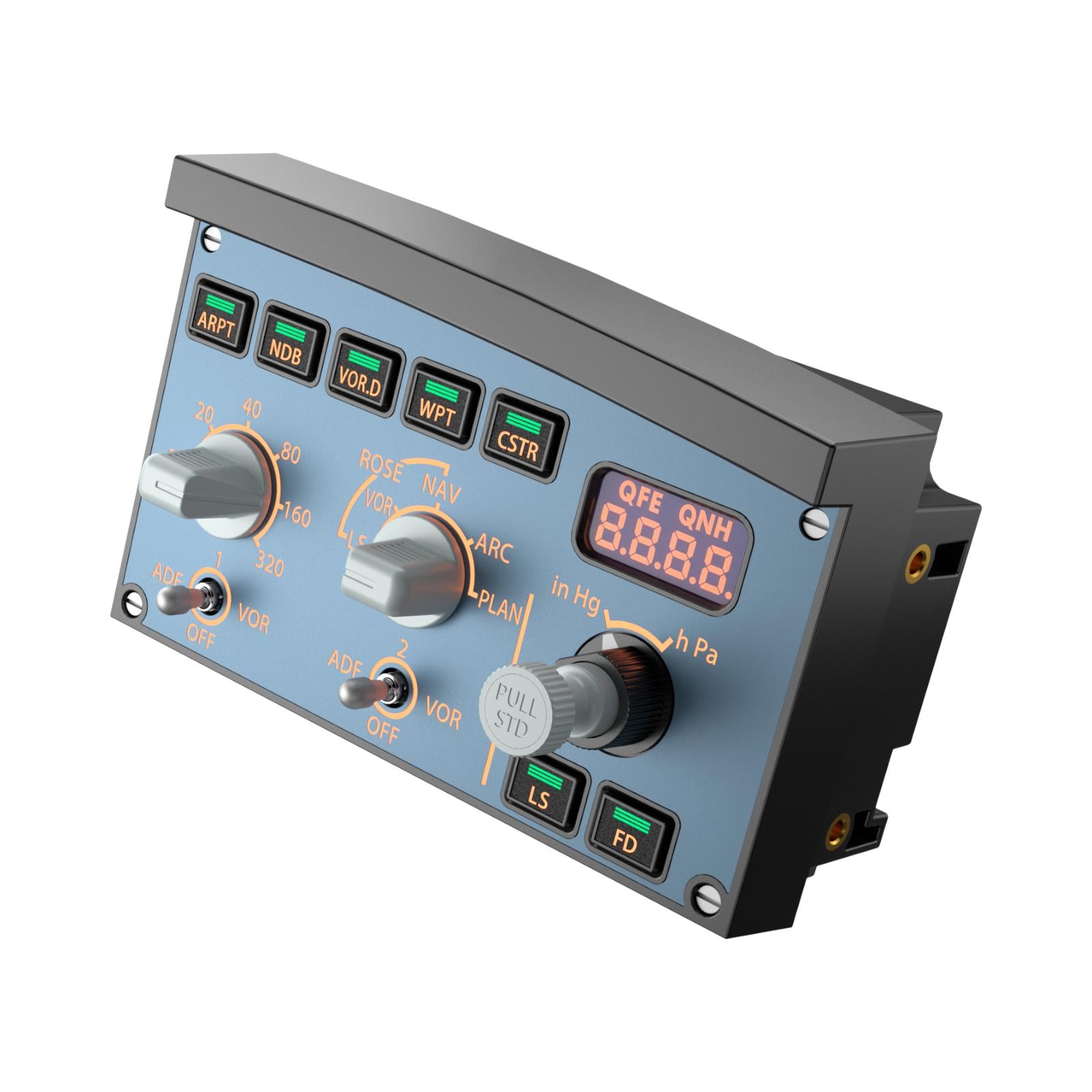

WINCTRL Full-Size EFIS Unit, featuring a full-structure molded design with authentic segment LCD, brings you closer to a 1:1 cockpit experience.

Panel and Image

Technology and Durability

Configuration and Parameters

Applicability

Modular Design

Panel and Image

1:1 Full-Structure Molded Design, 3D Surface Detailing.

Authentic Color Display Like the Real Aircraft.

Built-In Glare Shield, Ensuring the Same Operational Feel as the Real Aircraft.

Adjustable Multi-Panel Backlighting with Game Auto-Sync Support.

Technology and Durability

Commercial-Grade High Precision Encoders: Offering authentic feedback and enhanced durability; Knob Push-Pull Function and HPa/InHg Selector: Featuring Hall sensors; Unique Encoder Acceleration Model: Feeling the most accurate rotary input adaptable to different aircraft modules.

ADF-VOR Select Switches: All-metal switches with custom metal caps, incorporating lift-limiter mechanisms to bring true-to-life movements.

Authentic Segment LCD: Full-structure mold with each character and its color perfectly matching the actual aircraft.

Tactile Feedback: Bringing you closer to the most realistic experience.

Configuration and Parameters

EFIS L/R

PULL STD Knob has a push-pull stroke of 2.5mm and can rotate 360° (without detents)

*Note: Only push, pull, and rotate; do not bend. Bending destructive force is 500gf. Maximum rotational torque is 150gf·cm, maximum push-pull force is 1200gf.

Applicability

Record-Breaking Dual-Mode Display Drive.

EFIS Platform Compatibility Schedule

Click to view details

Data-Driven Display Mode: More efficient, ideal for open-interface aircraft modules.

"Stream-Driven Display Mode" supports real-time MCDU or PFP3N data synchronization with compatible aircraft modules from the continuously updated list on the official website for Windows platform.

*320 refers to the Airbus A320 aircraft model and is not a product code or designation of WINCTRL.

SimAppPro Plug-and-Play: No manual setting required.

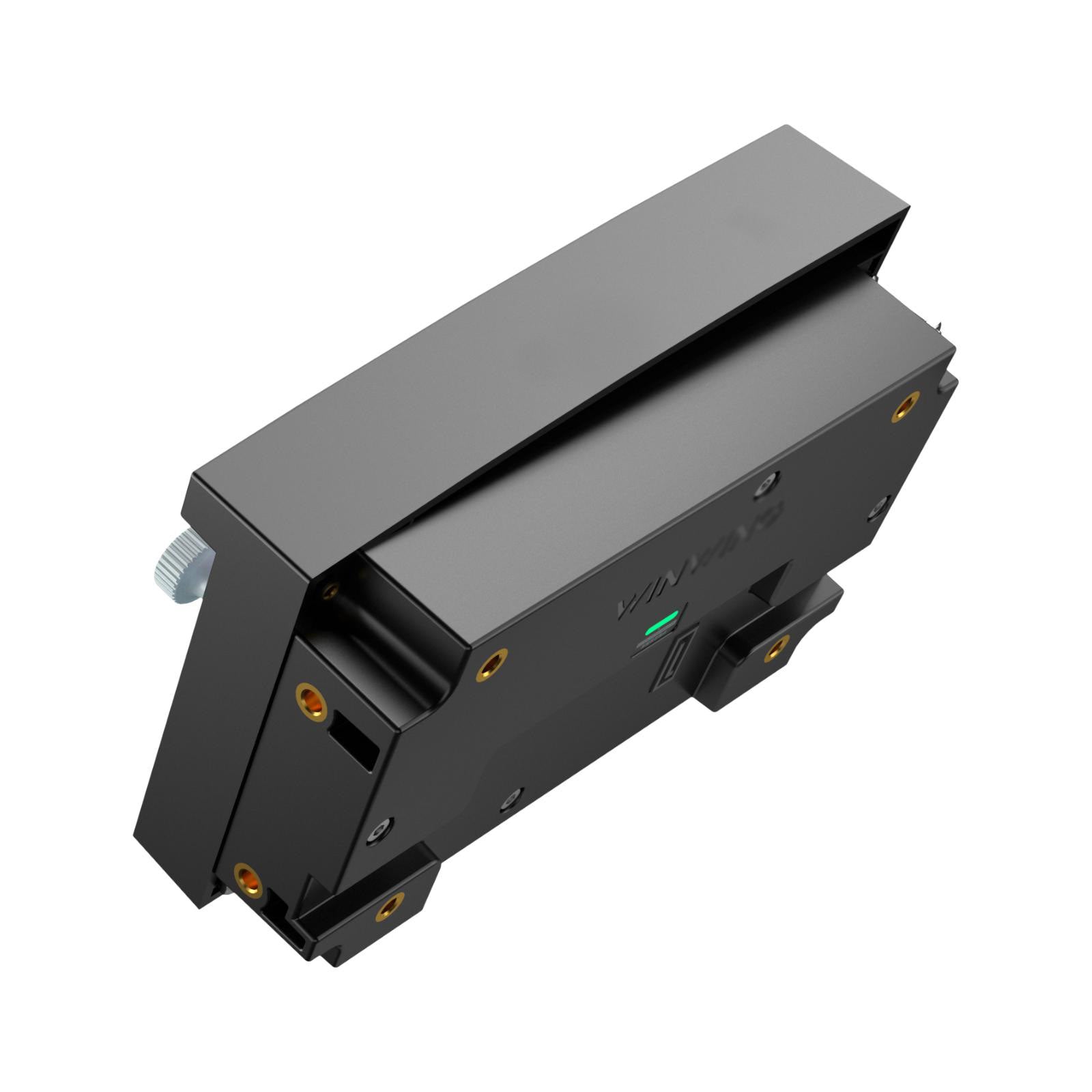

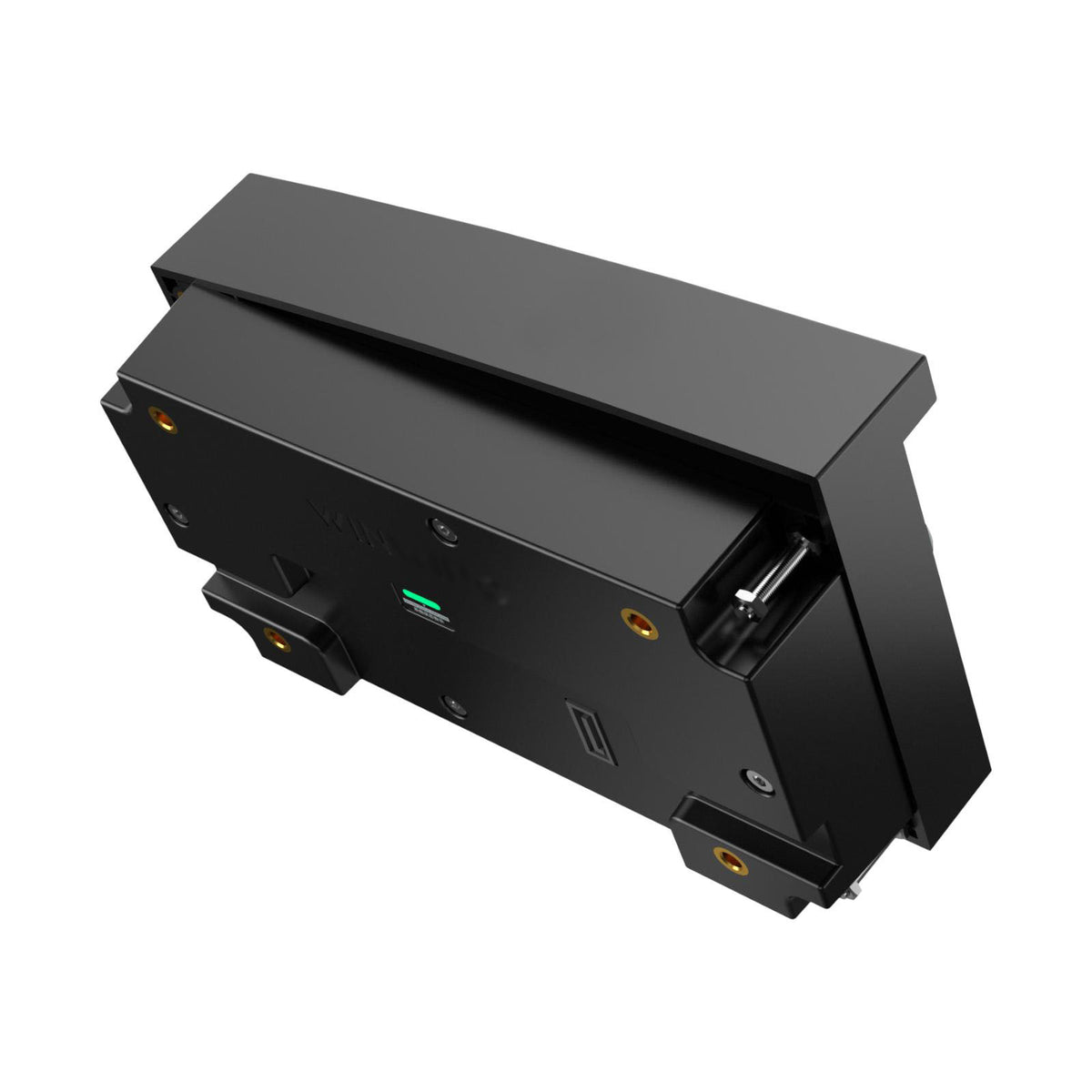

Modular Design

Multiple Independent Functional Modules: Can be combined as needed.

Hidden Connectors Included.

Combining into a Complete Set with FCU.

*EFIS module is designed to work with the FCU of WINCTRL's MIP Airline Series, sharing the same USB port. For optimal performance, it is not intended for standalone use.
