Trak Racer V2 Pro 2CH 200W Low-Frequency Class-D Amplifier and Bass Shaker Kit with Rig Mount

The Trak Racer V2 Pro bass shaker kit is a complete tactile feedback system built for sim racing, flight simulation, gaming, and immersive media. Combining a high-power bass shaker, true 2-channel Class-D amplifier, and universal rig mount, it delivers powerful low-frequency feedback you can physically feel.

KEY BENEFITS

• Adds realistic tactile feedback for engine vibration, kerbs, turbulence, impacts, and environmental effects
• Improves immersion by translating audio and simulation telemetry into physical sensation
• Delivers stronger and cleaner low-frequency performance than entry-level vibration motors
• Supports more precise tuning with stereo amplifier controls and adjustable frequency filtering
• Installs on Trak Racer and non-Trak Racer rigs for broader cockpit compatibility
• Expands easily with optional second bass shaker support for larger simulator setups

WHO IT’S FOR

This system is ideal for sim racers, flight sim enthusiasts, FPS players, and immersion-focused gamers who want more physical realism from their setup. It is especially valuable for users running dedicated cockpits, aluminum profile rigs, or simulator frames who want tactile feedback that enhances braking feel, engine response, runway rumble, or in-game impact sensation beyond what audio alone can provide.

KEY FEATURES

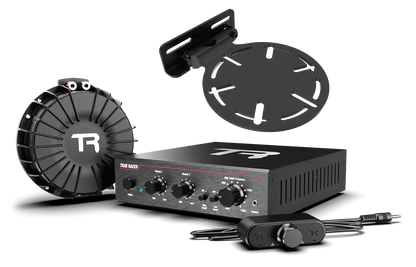

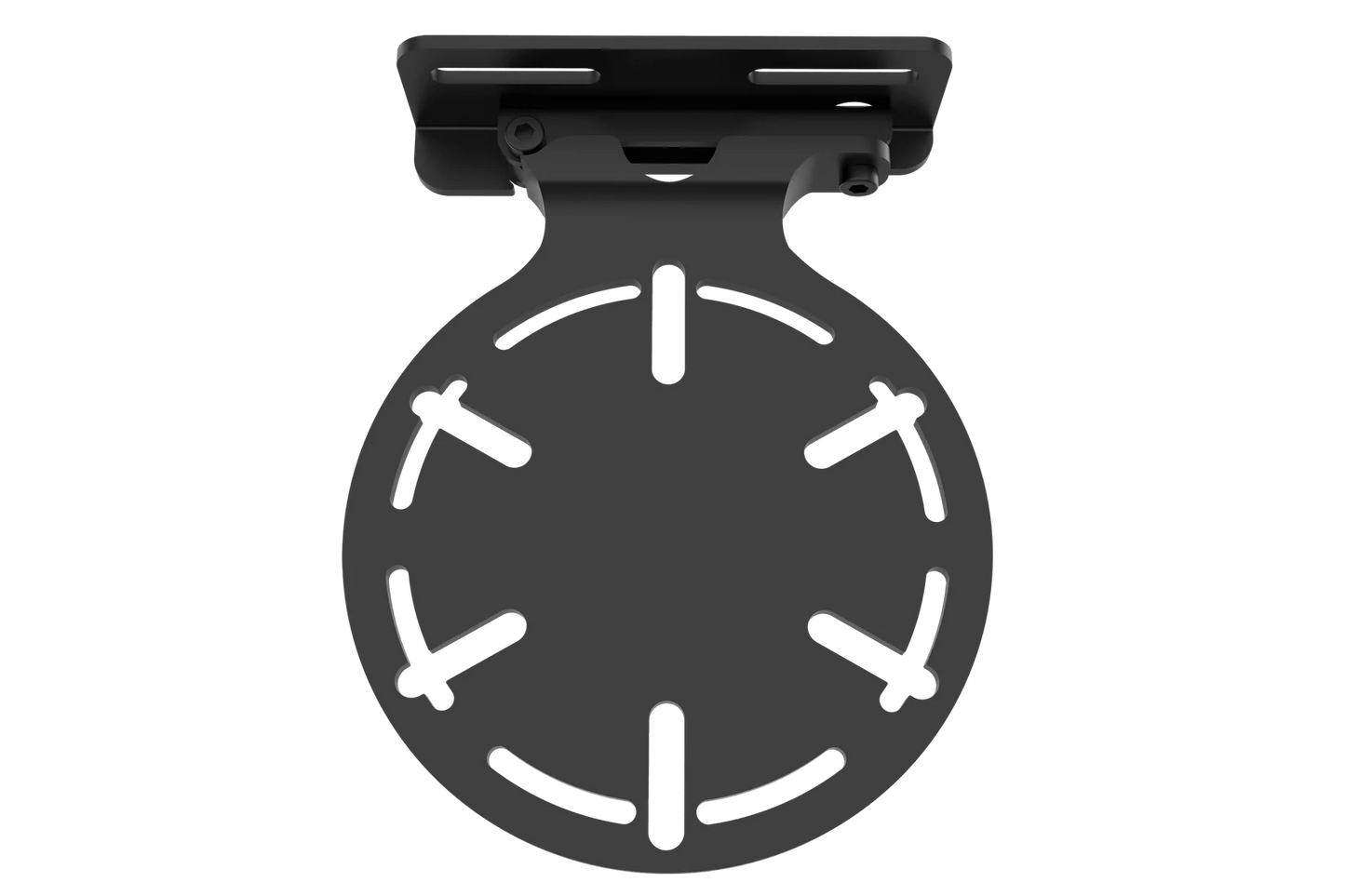

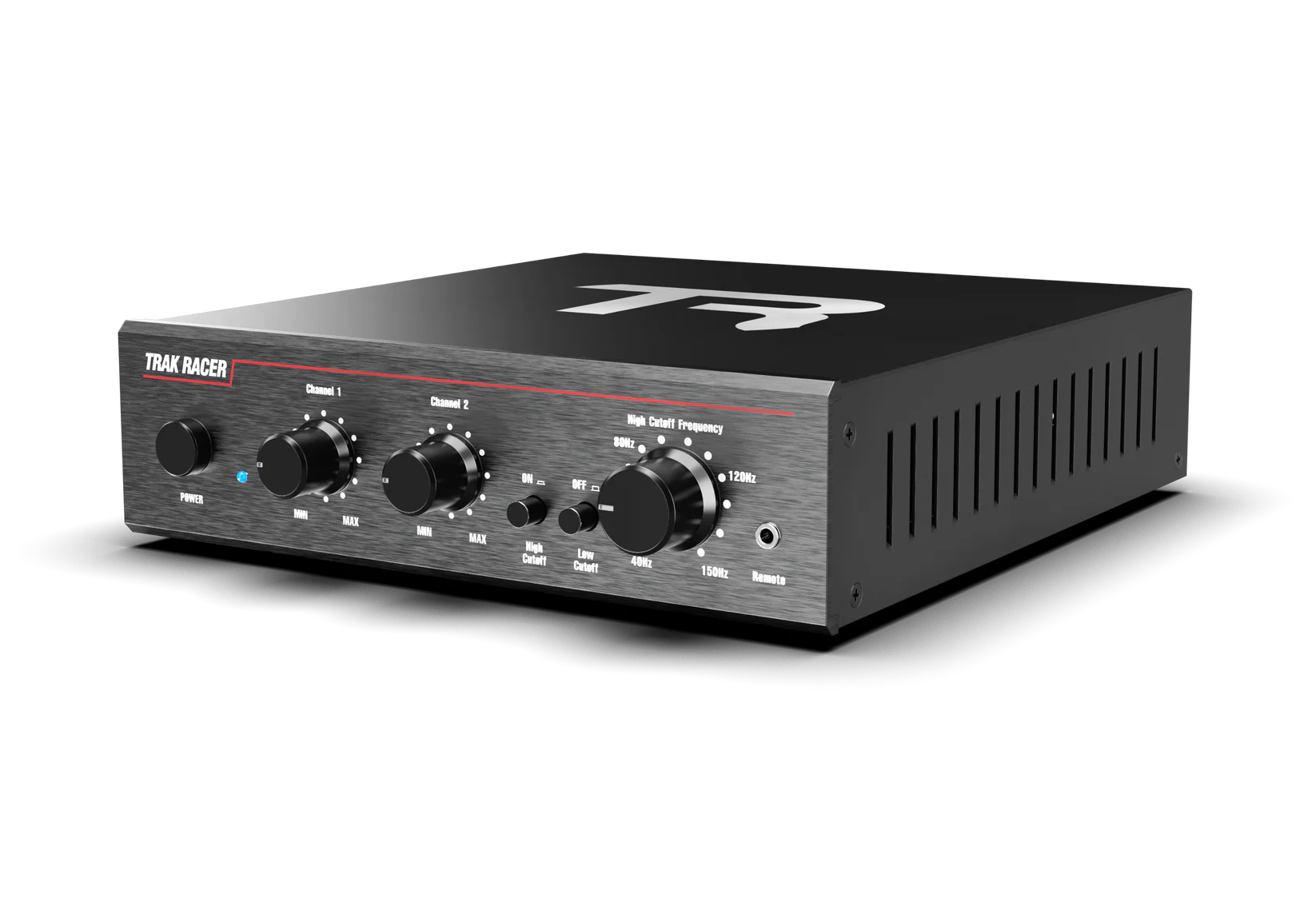

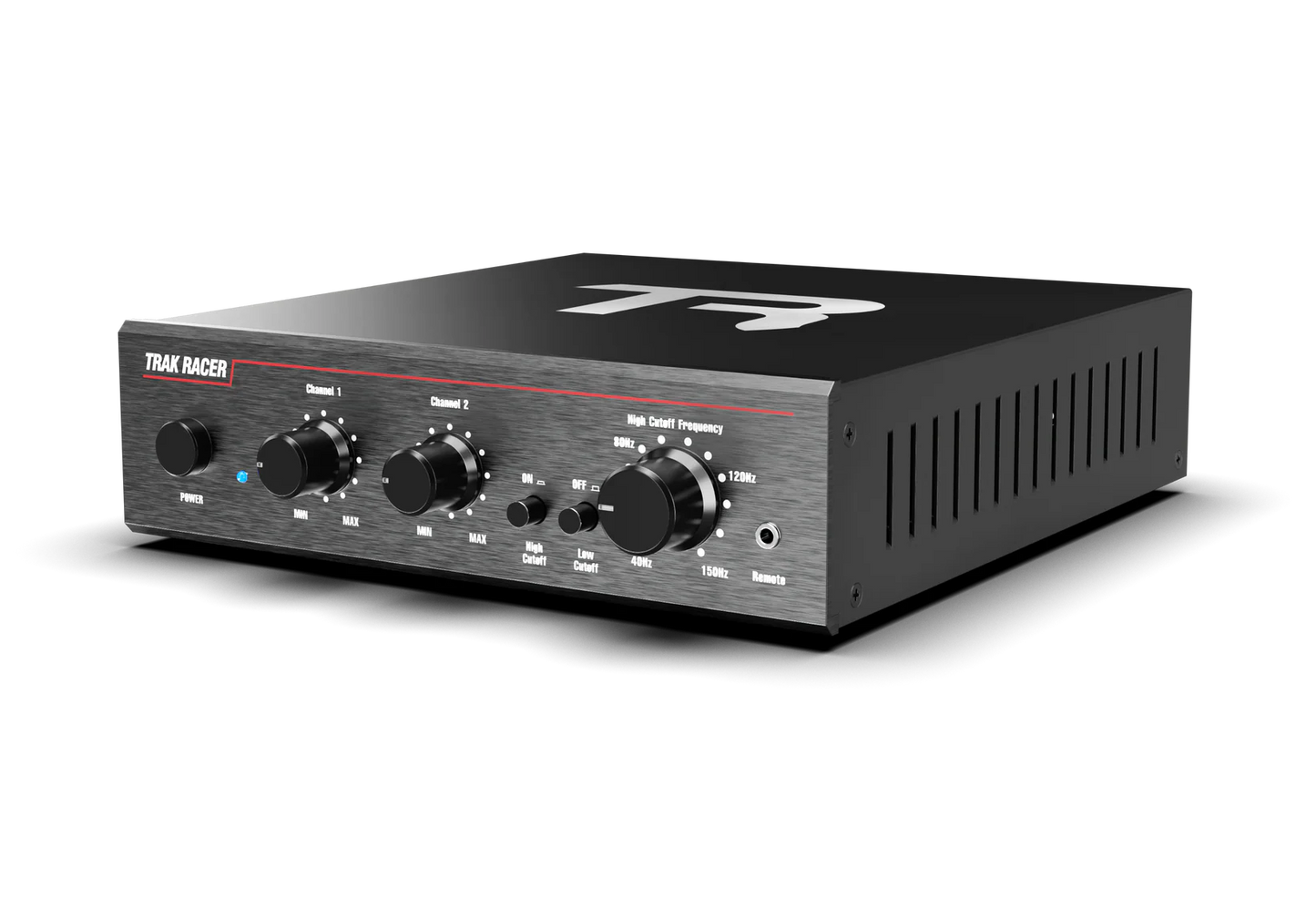

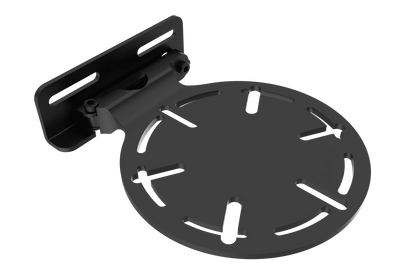

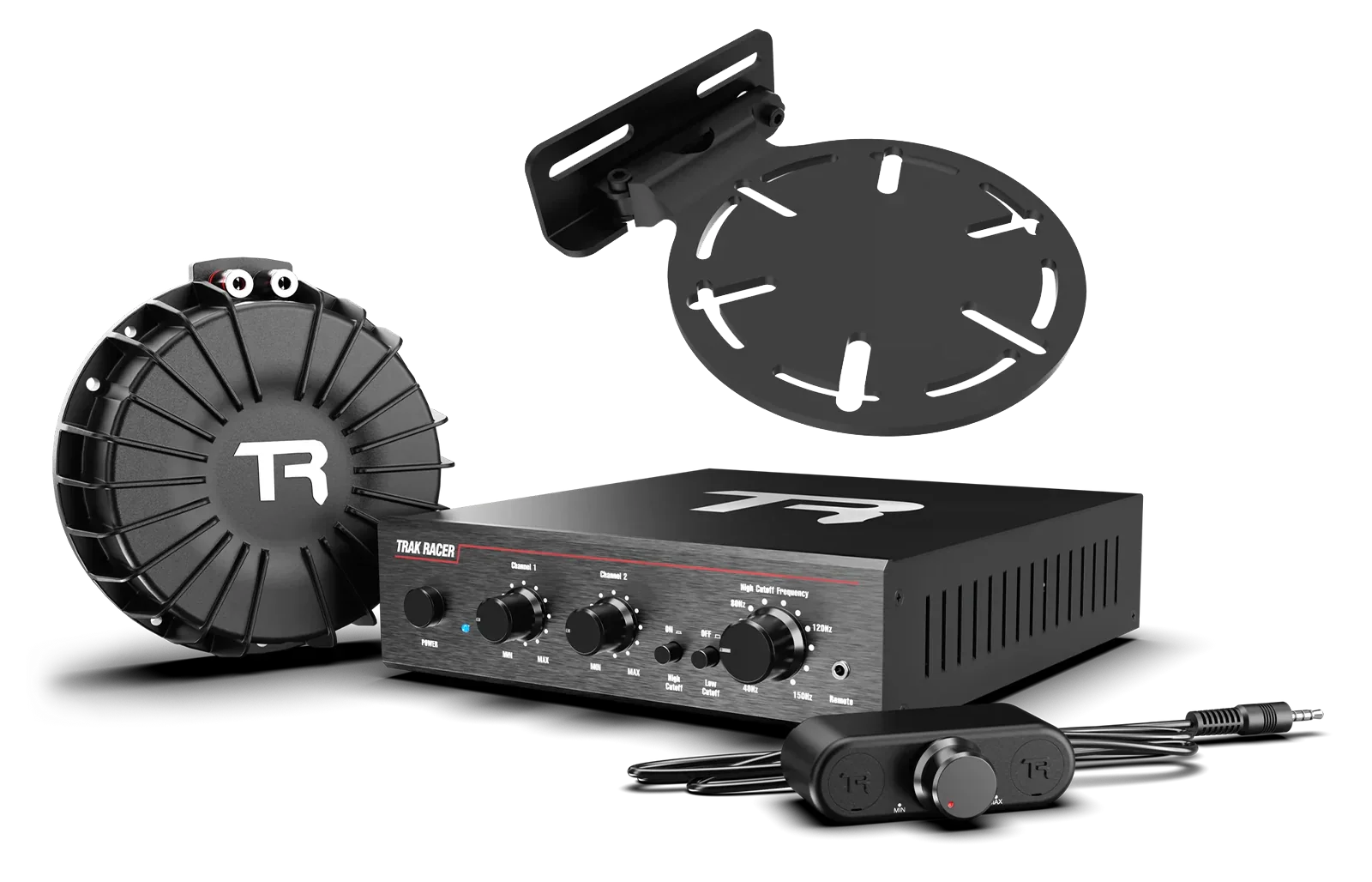

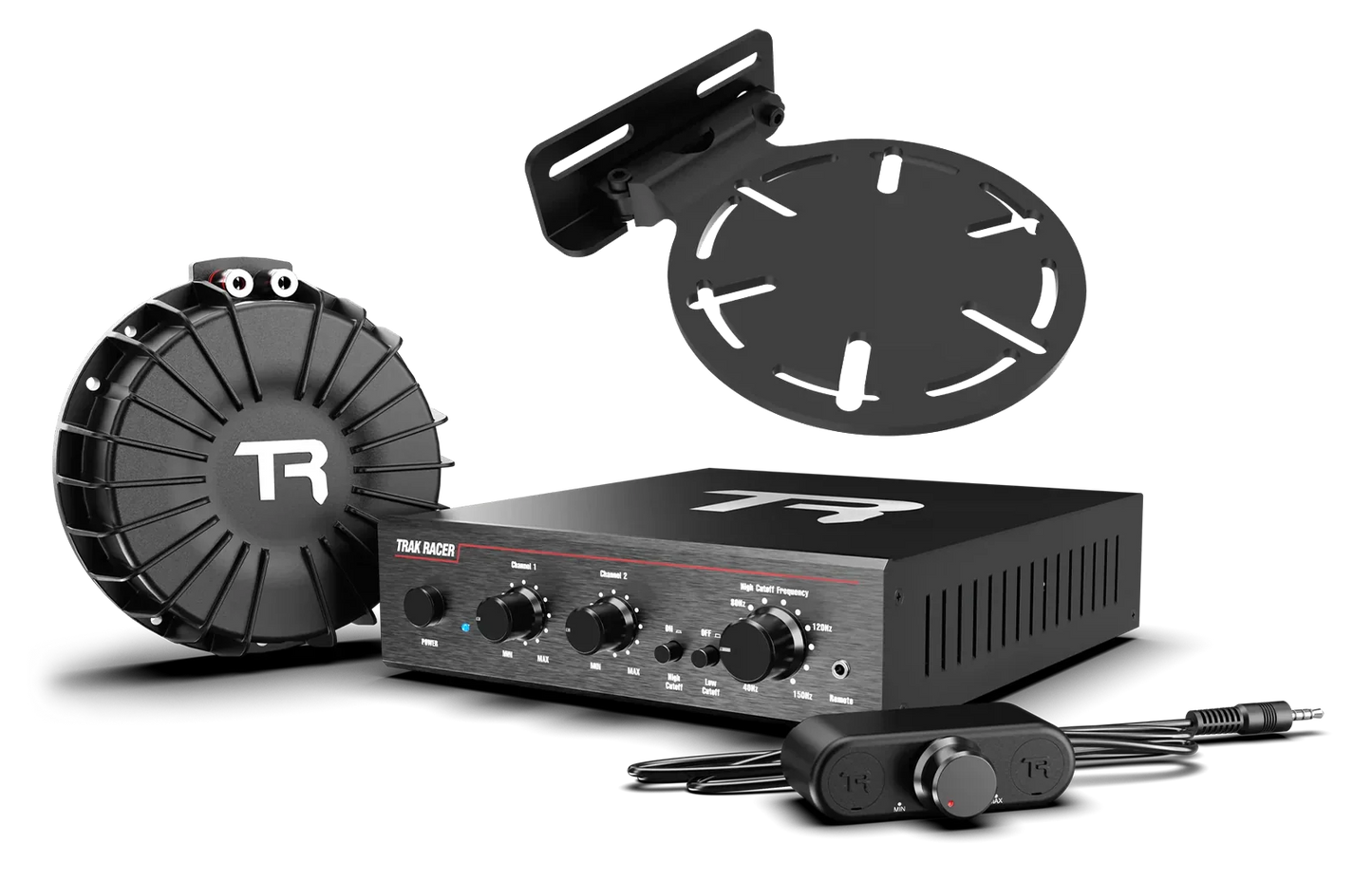

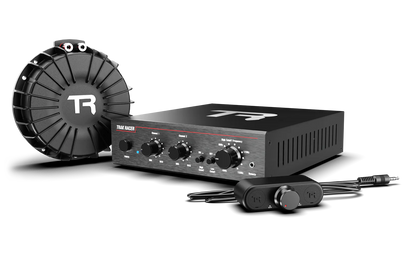

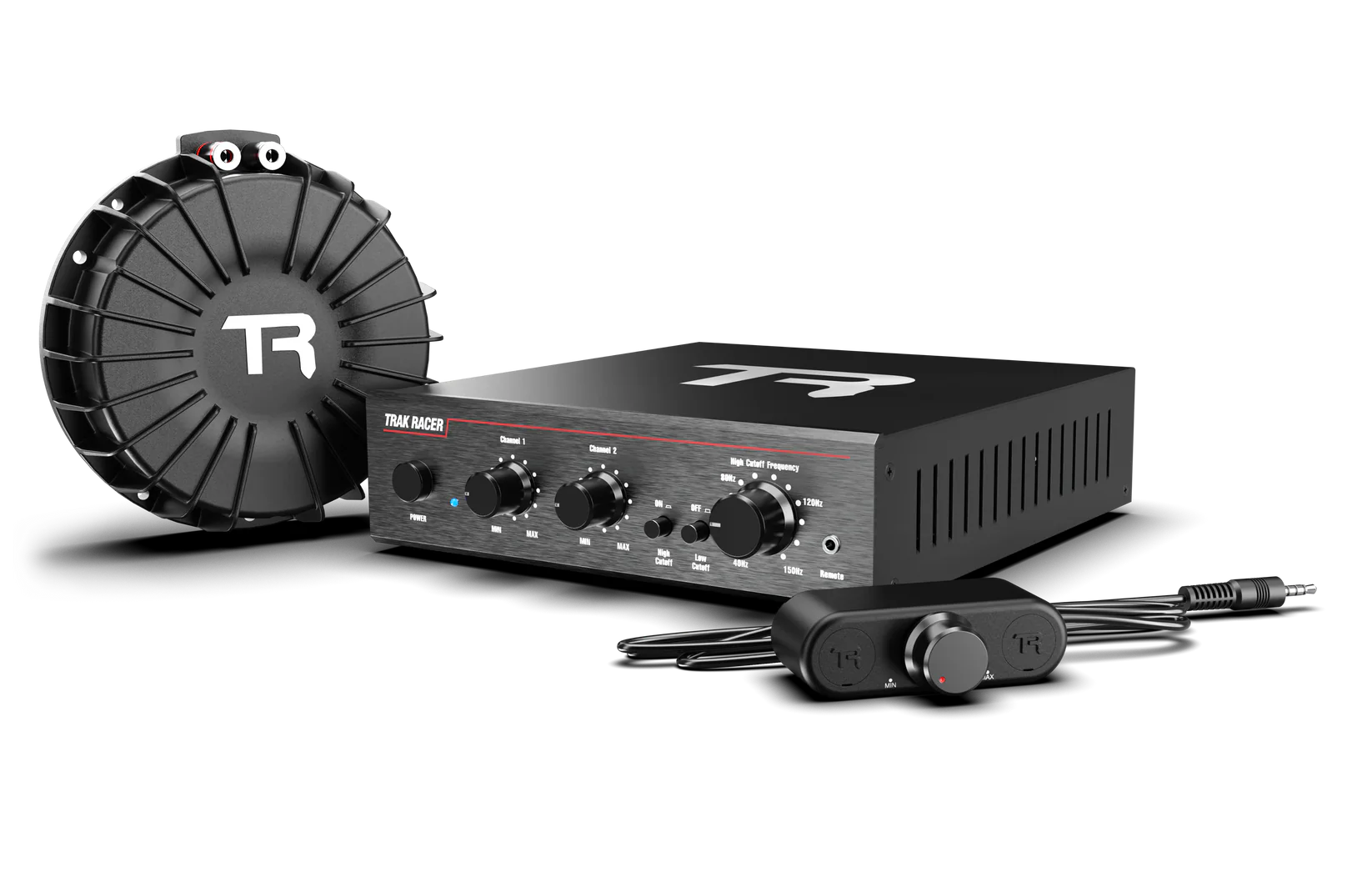

The Trak Racer V2 Pro bass shaker kit combines the TR-BSA100 tactile transducer with a dedicated 200W Class-D stereo amplifier and universal mounting plate for a full immersion upgrade. The included bass shaker reproduces deep low-frequency effects across a 20 to 120 Hz range, making engine RPM, road texture, and environmental feedback far more physical. The 2-channel amplifier offers cleaner power delivery than basic mono systems, with adjustable low-pass filtering for more controlled tuning. Universal mounting compatibility allows installation across Trak Racer cockpits, simulator frames, and many third-party rigs. The Trak Racer V2 Pro bass shaker kit also includes heavy-duty speaker wire and RCA / 3.5 mm input connectivity for streamlined setup.

TECHNICAL SPECIFICATIONS

• Product Name: Trak Racer V2 Pro Bass Shaker Kit with 200W Class-D Amplifier

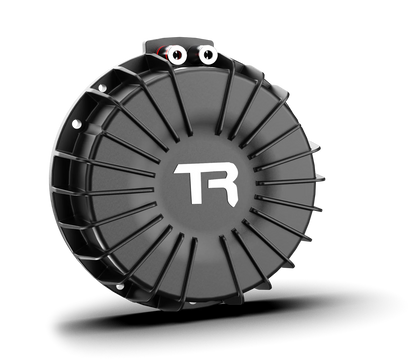

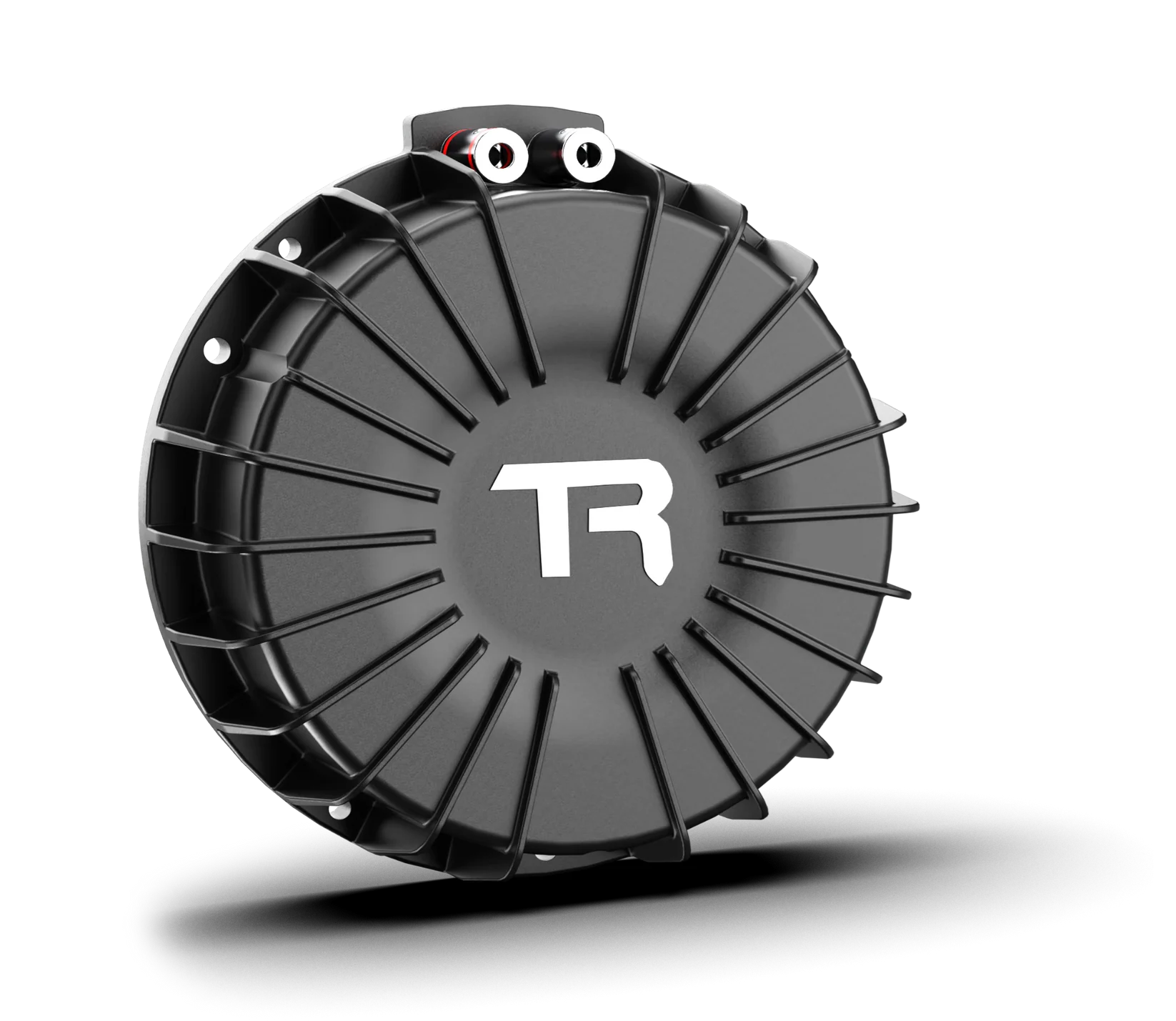

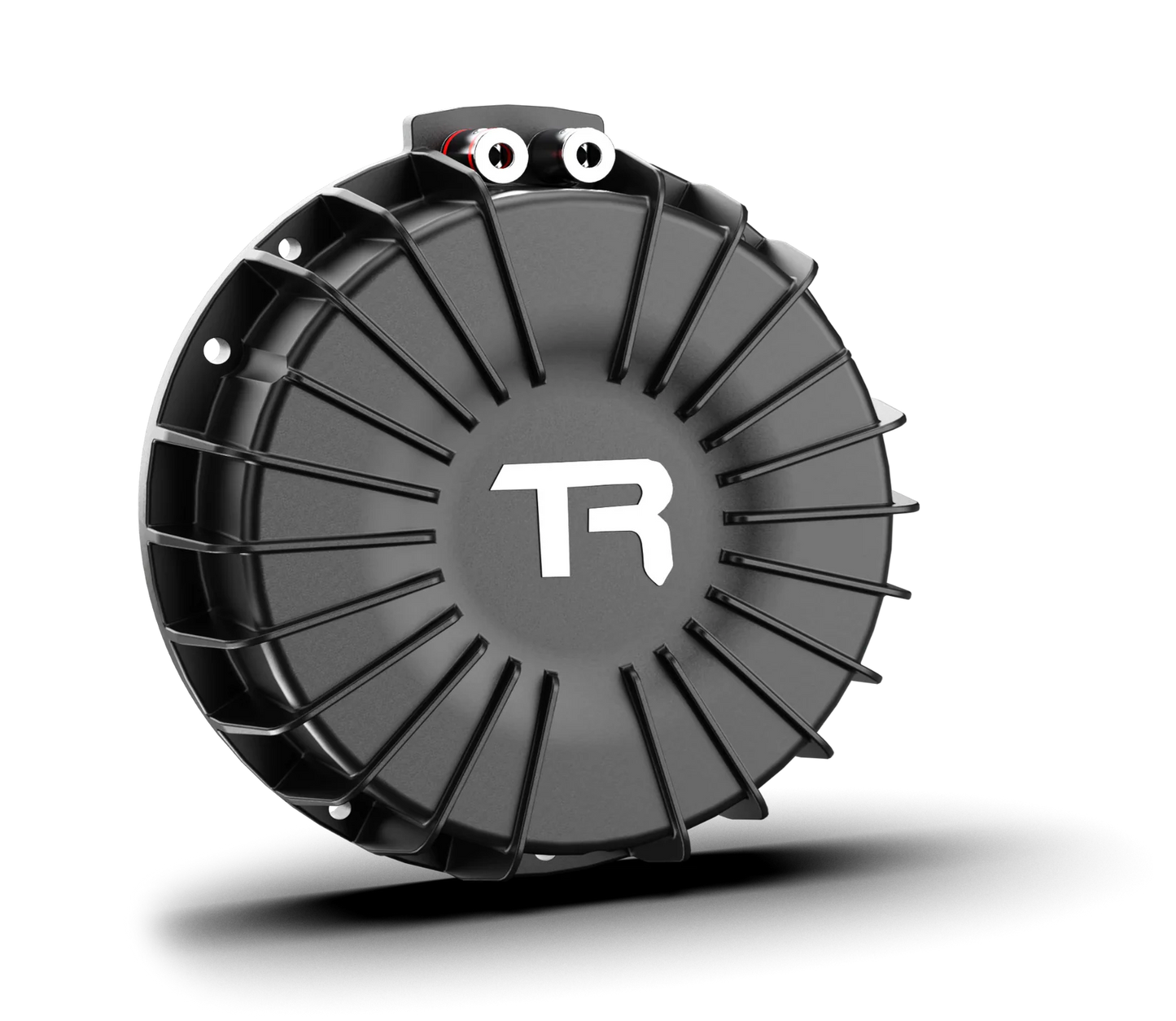

• Included Bass Shaker Model: TR-BSA100
• Bass Shaker Type: Low-frequency tactile transducer
• Bass Shaker Dimensions: Ø155 × 51 mm
• Bass Shaker Impedance: 4 Ω
• Bass Shaker Nominal Power: 50 W
• Bass Shaker Maximum Power: 100 W
• Bass Shaker Frequency Range: 20–120 Hz
• Bass Shaker Weight: 1.25 kg

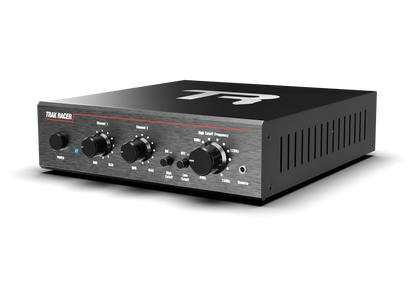

• Amplifier Output Channels: 2

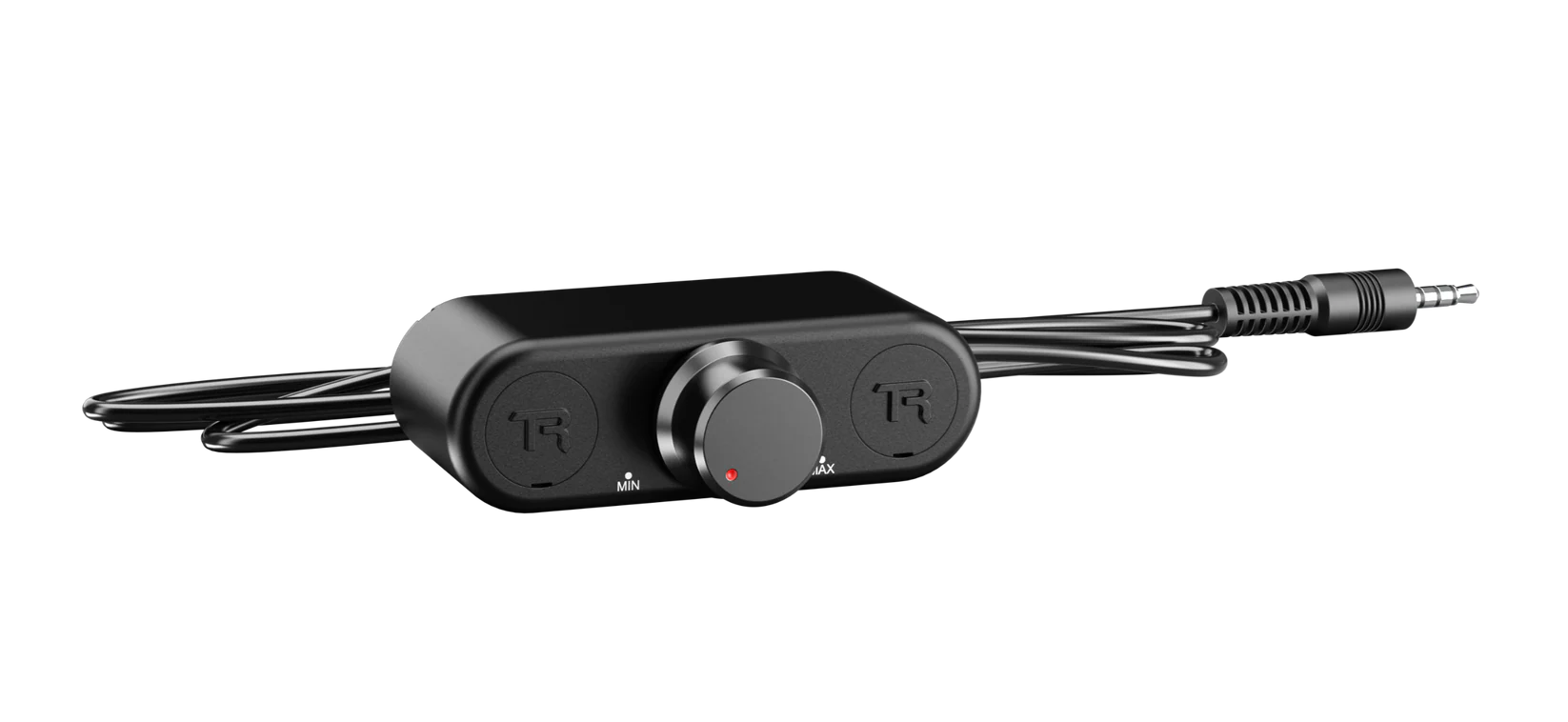

• Amplifier Input Channels: 2 (RCA + 3.5 mm)
• Amplifier Output Power: 100W RMS @ 4Ω / 50W RMS @ 8Ω
• Amplifier Frequency Response: 30–200 Hz ±3 dB
• Variable Low Pass Filter: 50–200 Hz
• Total Harmonic Distortion: 1% stereo / 0.05% mono
• Signal to Noise Ratio: 95 dB @ 100 Hz A-weighted
• Power Requirements: 110–240 V AC
• Max Power Consumption: 313 W
• Amplifier Class: Class-D

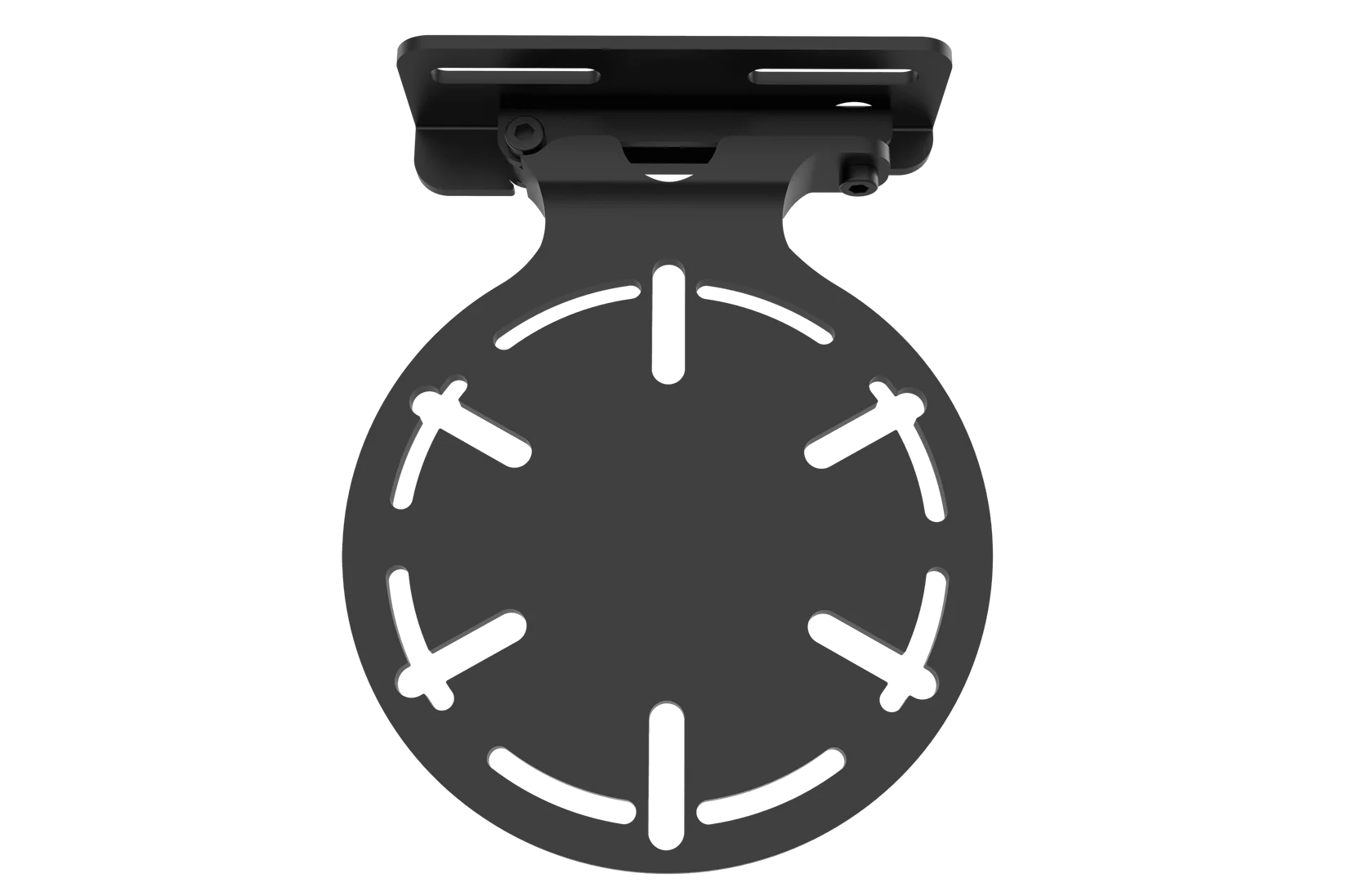

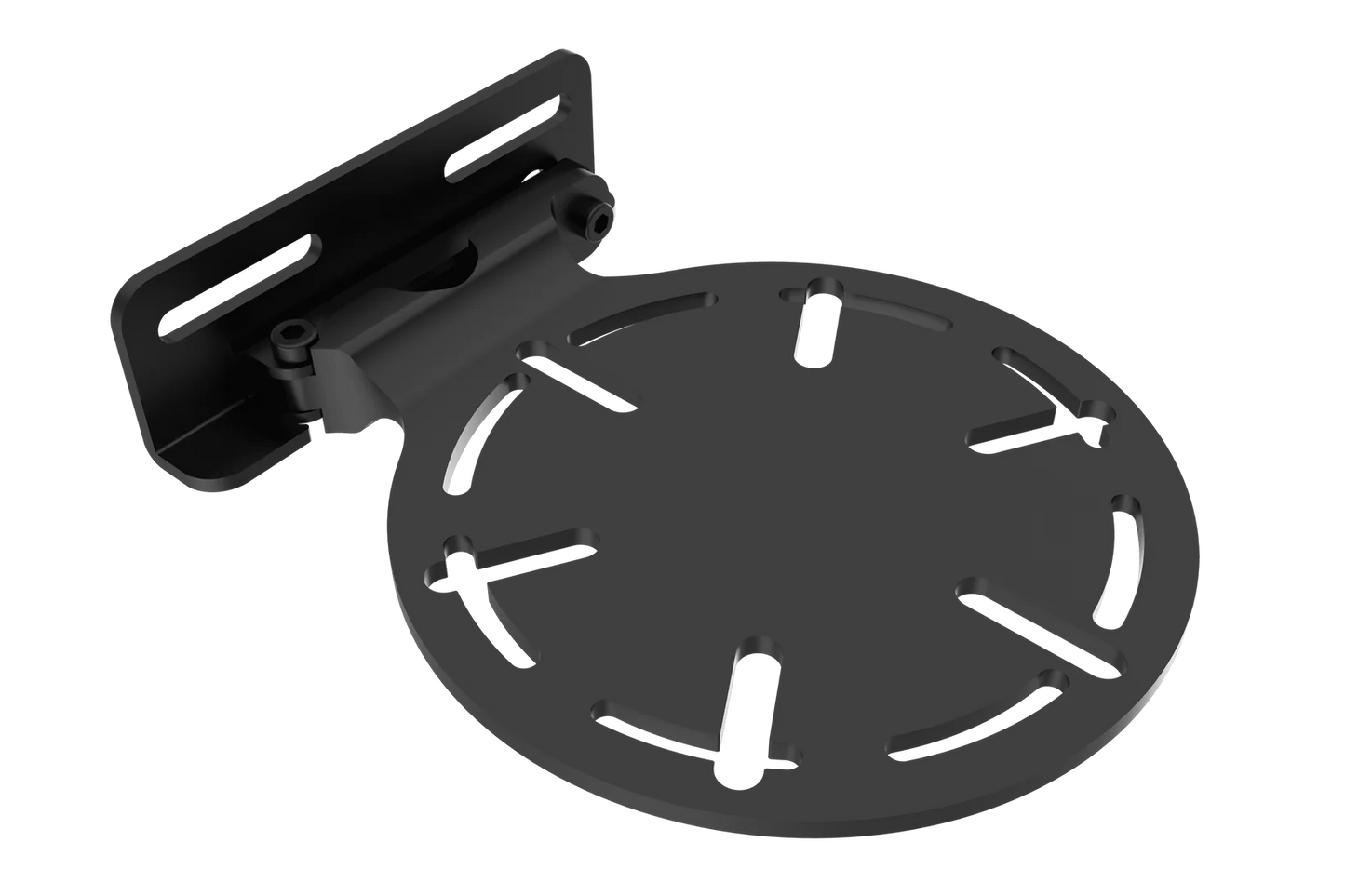

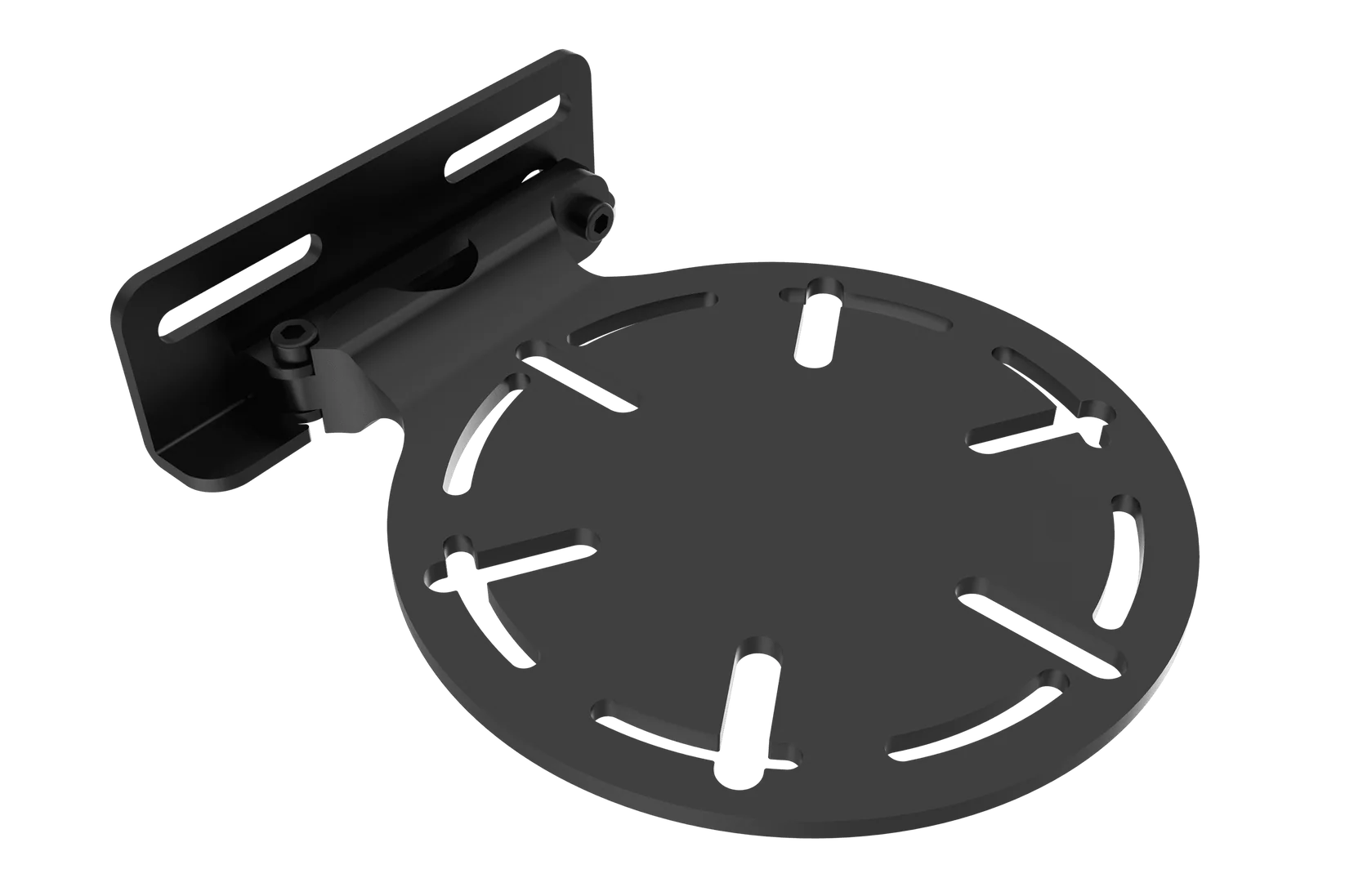

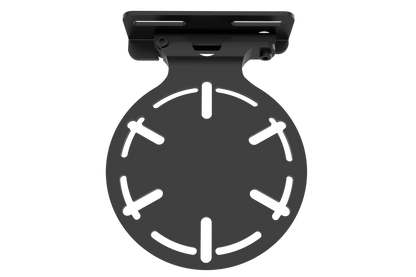

• Included Accessories: Universal mounting plate, 2m 16-gauge speaker wire, RCA / 3.5 mm input cables
• Expandability: Supports optional second bass shaker

REAL-WORLD USE / EXPERIENCE

In real-world simulation, this kit transforms your cockpit from visually immersive to physically immersive. During racing, engine RPM becomes a felt sensation, kerbs gain texture, and braking zones feel more dynamic through your rig. In flight sims, runway contact and turbulence become noticeably more convincing. For FPS and entertainment use, explosions and bass-heavy media gain physical depth that standard speakers cannot replicate. The stereo amplifier’s cleaner power delivery means stronger feedback without muddy vibration, helping users create a more believable and customizable tactile environment.
