WINCTRL Orion 32 Rudder Pedals Metal.With Damper 1.0

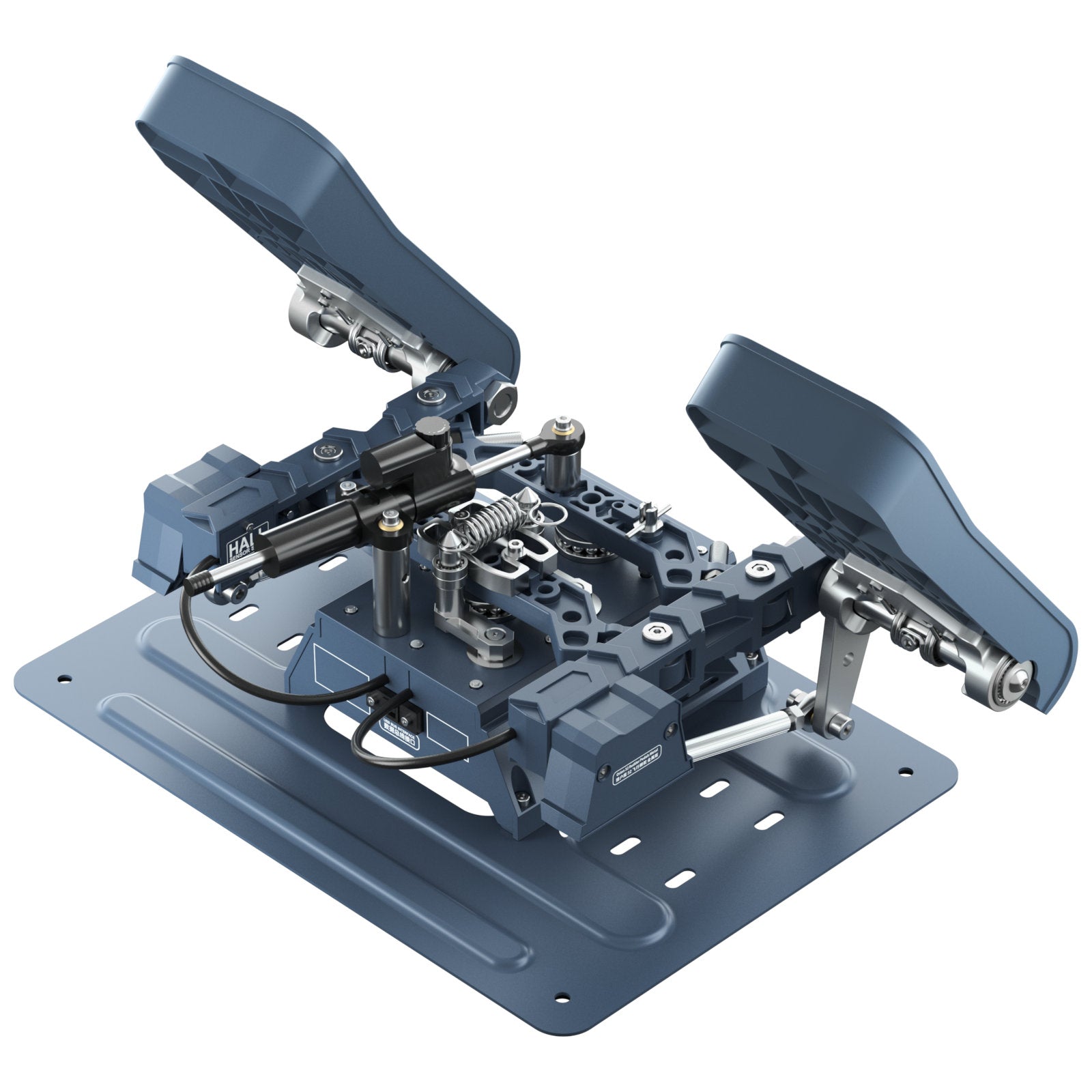

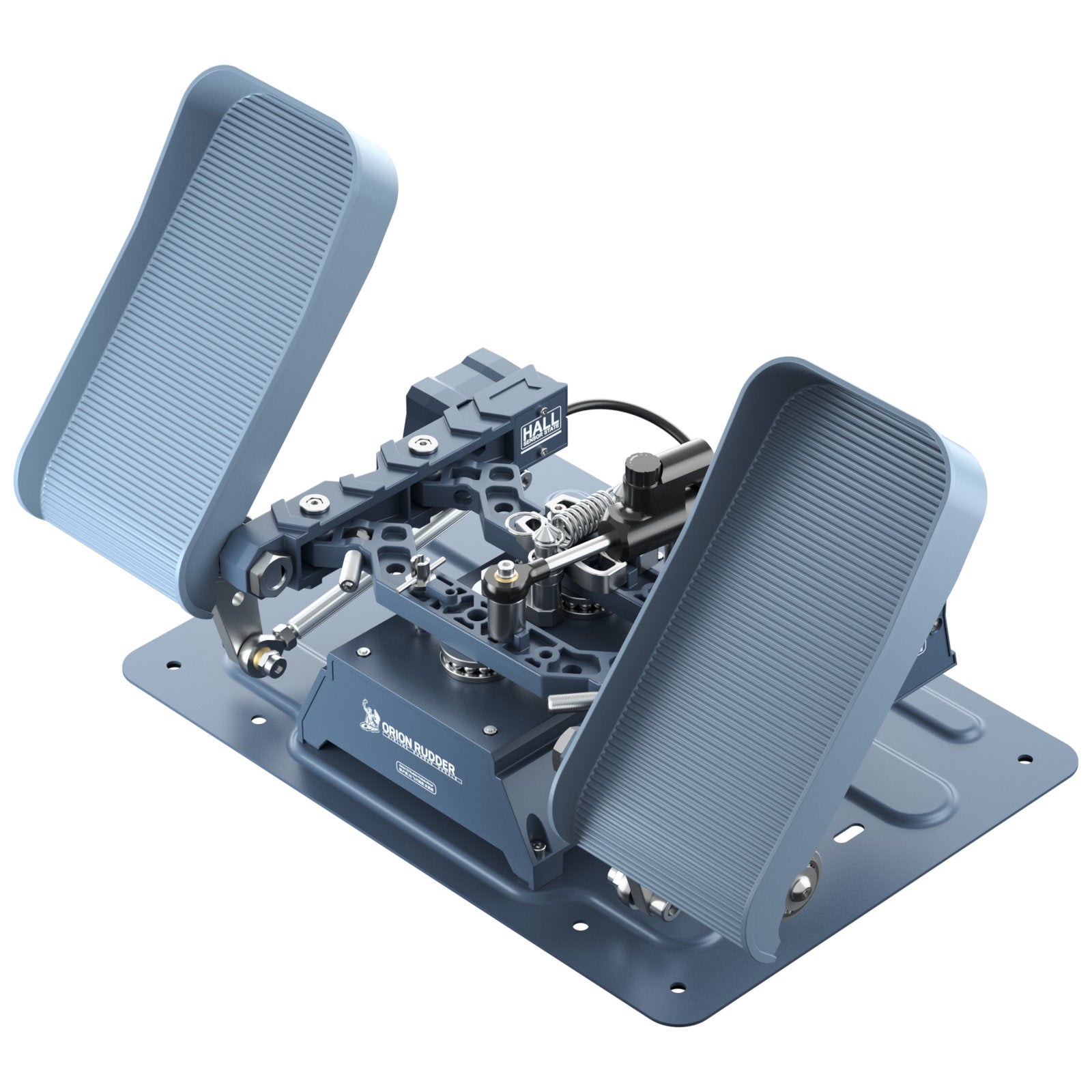

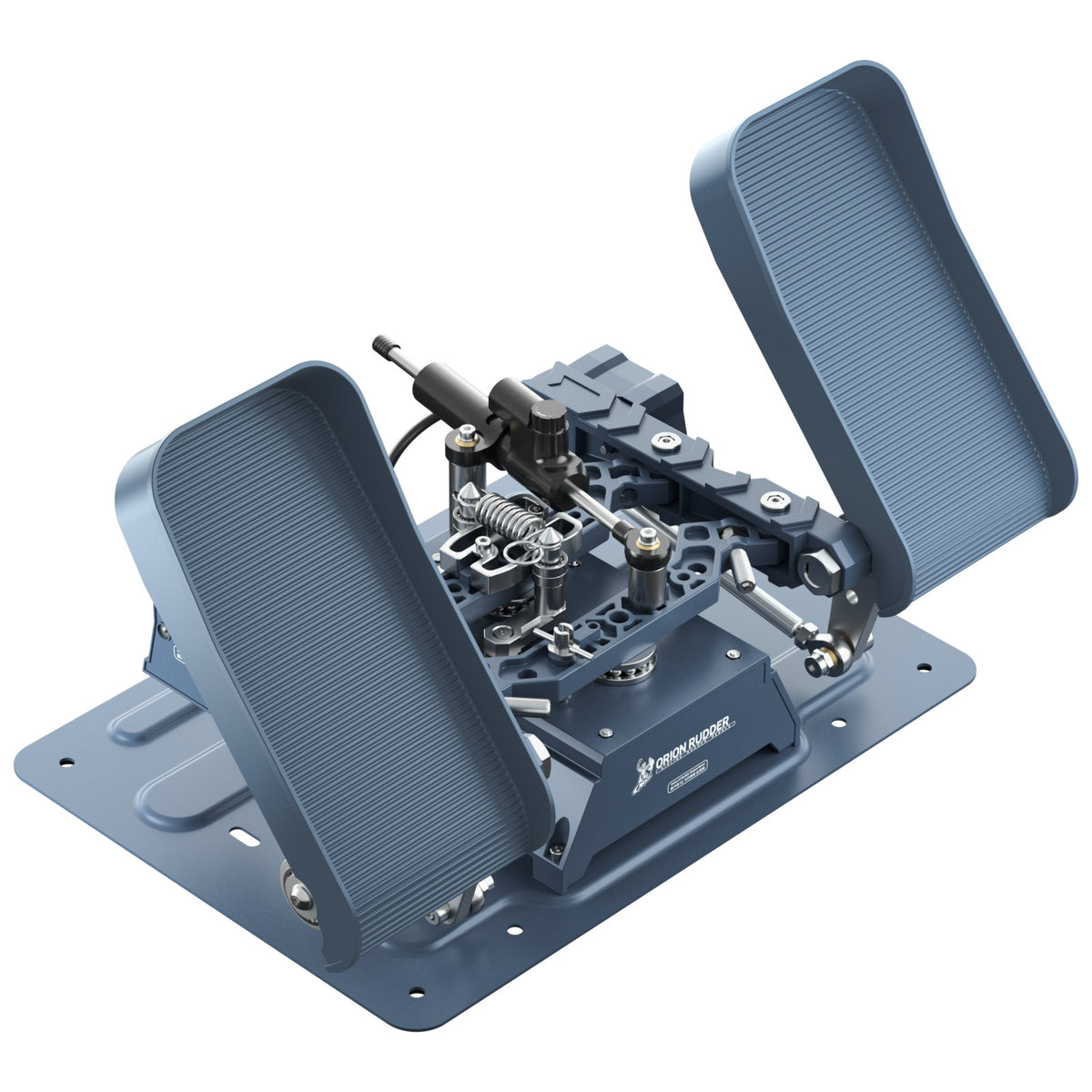

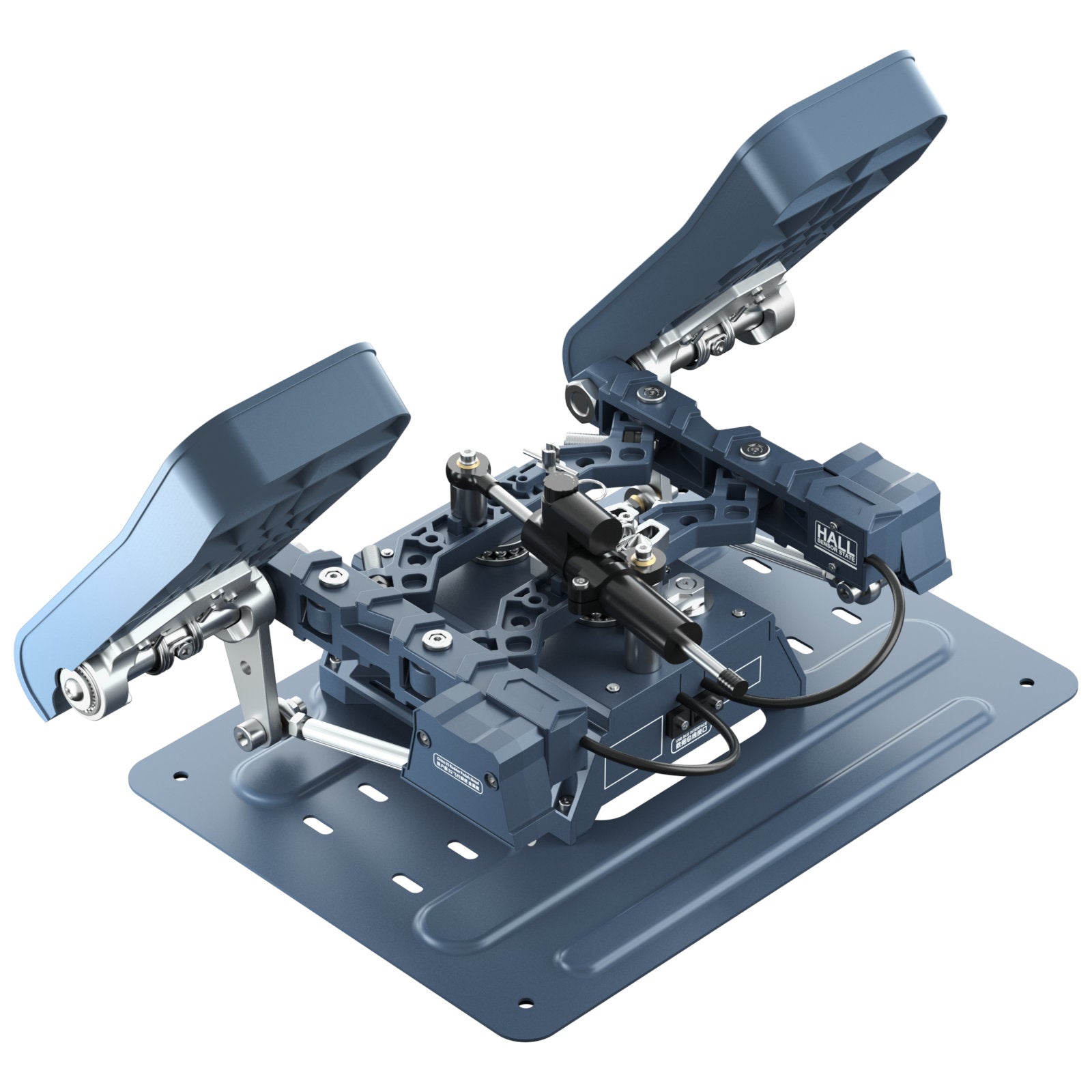

Name: WINCTRL Orion 32 Rudder Pedals Metal.With Damper 1.0
Brand: Winctrl
Price: 375.0 USD
Availability: InStock

$375.00 USD

Oferta Agotado

Los gastos de envío se calculan en la pantalla de pago.

Variantes de producto

Cantidad

Specification

Full-scale airliner pedals, full-metal frame, stainless-steel center-return mechanism, and a 54cm ultra-wide pedal width, optimized for ergonomic comfort and enhanced realism.

Structure and Image

Applicability

Configuration and Parameters

Technology and Durability

Structure and Image

Comparison of three Flight Rudder Pedal structures.

The first true airliner rudder for home sim

Full-Support Heel-Pivot Pedals, first of its kind, precisely recreating the authentic pedal movement on a real airliner, preventing accidental brake trigger during yaw-axis movement.

Optimized parallelogram structure

Parallelogram structure, minimizing vertical space requirements for installation.

Built-in cushioning, smooth motion

Smooth motion, no impact during the movement. Built-in cushioning around the moving structure.

Applicability

3-Mode quick switching, fully versatile

Quick-release spring, main shaft lock, and specialized center-return mechanism. Tool-free switching among 3 modes: Fixed-wing self-centering mode^①, rotary-wing none-centering damping mode^②, ground vehicle driving mode^③.

Note: ① for airliner and fighter jets, ② for helicopters, ③ for tanks, racing cars and more.

Metal anti-slip base, rock-solid stability

Heavy-duty metal base and anti-slip pads, ensuring stable placement directly on wood, tile, concrete, and other common floor surfaces.

Pre-drilled mounting holes for all-scenario installation

Pre-drilled mounting holes on base and side profile, supporting various installation methods, from under-desk use to professional cockpit build.

Configuration and Parameters

WINCTRL Orion 32 Rudder Pedals Metal (With Damper Edition)

Dimensions: 546mm*333mm*318mm

Weight: 8.0kg=17.64lb

Pedal Travel: Pitch angle of 15°

Main Axis Travel: angle of 76° (equals travel distance of 15cm)

Hall-Effect Senors: on both pedals and main axis

Pedal travel angle of 15°, brake pedal force of 10kg, yaw pedal force of 12kg.

15cm travel distance on pedal deflection, allowing fine-tuning and travel limit adjustment.

Sliding-rail center-return, realistic force curve

Improved center-return mechanism. Ball bearing plus torsion springs, on top of the metal frame support, to achieve a compound force curve, instead of a simple spring return. More precise flight control in every stepping.

Adjustable Damper Kit for fixed-wings / rotary-wings

Customized-level precision damper kit, optimized for two different damping requirements: high-damping none-centering mode for rotary-wings, and self-centering mode for the fixed-wings.

Note: Damper Kit is not included in the standard version of the rudder pedals, and can be purchased separately.

Hall sensors on both axes, high-precision & low-latency

Both pedals and main axis are equipped with Hall sensors, offering high-precision and low-latency control, in line with all WINCTRL product ecosystem.

Technology and Durability

Die-cast metal construction, outstanding wear resistance

Integrated die-cast metal construction, with durable high-temperature powder-coated surface, combining the metallic texture with outstanding wear resistance.

Aviation-grade aluminum, built for peak performance

Aviation-grade aluminum structure, plus SU304 stainless steel on critical parts like the CAM. Footplates are metal-supported with industrial-grade polymer surface, impact and deformation resistant.

Composite bearing configuration, fully capable for aviation training

24 rolling bearings, 8 linear ball bearings, and 4 spherical bearings, paired with 2 torsion springs. Performance approaches training standards, delivering long-term stability and durability for both home cockpit use and professional simulation.

Packing List
